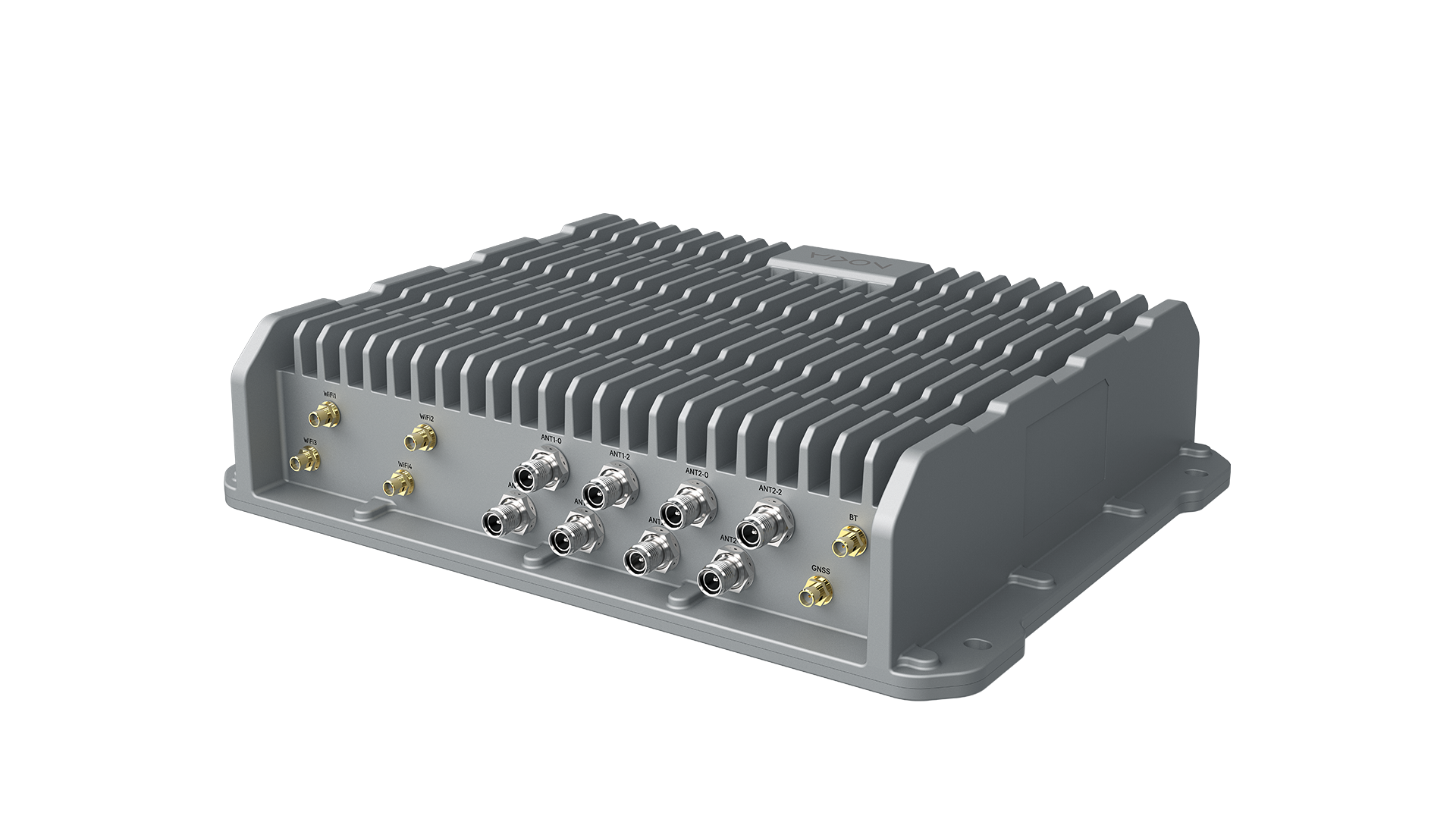

Nokia Industrial 5G fieldrouter FRRO505x
The new Nokia 5G fieldrouters, are designed to help industries gain more from their multi-connectivity platforms, industrial assets and operational data and fulfill their need for greater intelligence. Additionally, one of them offers compute capabilities at the far edge for more demanding AI/ML use cases.
Product description
Description
Support for different use cases
- 2x 5G/4G modules, 2x Wi-Fi
- Dedicated GNSS module , dual band L1/L5 support
- Supports Wi-Fi in 2.4GHz/5GHz & Wi-Fi 7
- 6 eth ports support- M12 interface with PoE support
- 1x CANbus- M12 interfaces
- Bluetooth support
- MPLS support
- RIP, BGP, OSPF, EVPN, VXLAN, GRE
- Dual power supply for redundancy
- Aluminium enclosure and enhanced corrosion protection
Integrates with
- Nokia MX Context sensing capabilities through sensors for machine insights: accelerations, gyroscope, environmental, GNSS, Bluetooth and more…
- Nokia Network Digital Twin for monitoring real time network performance and predict maintenance and potential downtime. Location tracking with HERE GNSS RTK and Bluetooth proximity.
- Nokia Industrial device management - IoT for zero-touch provisioning and configuration with built-in remote management capabilities.
- Nokia MX Boost to extract maximum value from disparate multi-radio layers (4G/5G) and Wi-Fi combining them into a single connection to optimize reliability and performance
Technical details
|
Product ID
|
HWNDUSES1105, HWNDUSES1103, HWNDUSES1107
|
|
Technologies
|
4.9G/LTE, 5G, Wi-Fi, Bluetooth
|
|
GPS
|
1
|
|
Locations
|
Americas, Asia Pacific, Europe, Middle East & Africa, US/CBRS
|
|
Chipset
|
Nokia Industrial 5G fieldrouter FRRO505a: Qualcomm SDX62+IPQ Series chip solution Nokia Industrial 5G fieldrouter FRRO505c: Qualcomm IPQ9574 |
|
Ruggedization
|
Yes
|
|
IP protection
|
IP67
|
|
Certifications
|
CE, FCC, ISED, ANATEL, MTC, RCM
|
|
Usage and features
|
Connect assets
|
|
Industry segments
|
Applicable to most industries
|
|
Manufacturer
|
Nokia
|
|
Related products
|
Nokia MX Boost, Nokia Industrial device management for IoT devices, Nokia Network Digital Twin & Network Digital Twin Analyze This, Nokia Visual Position and Object Detection
|
